电动装载机
欧能
电动装载机
电动
双泵合流
5800kg
3380mm
CE/RoHS/SGS
产品介绍

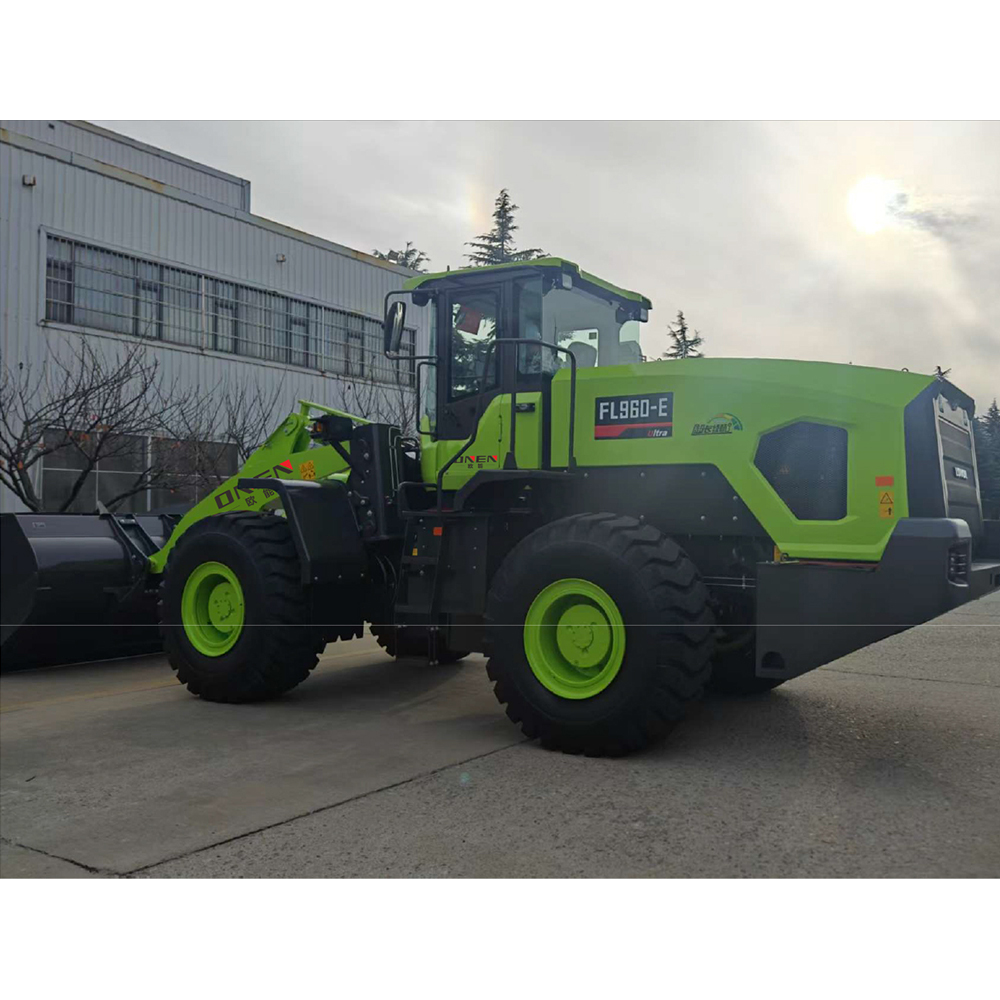

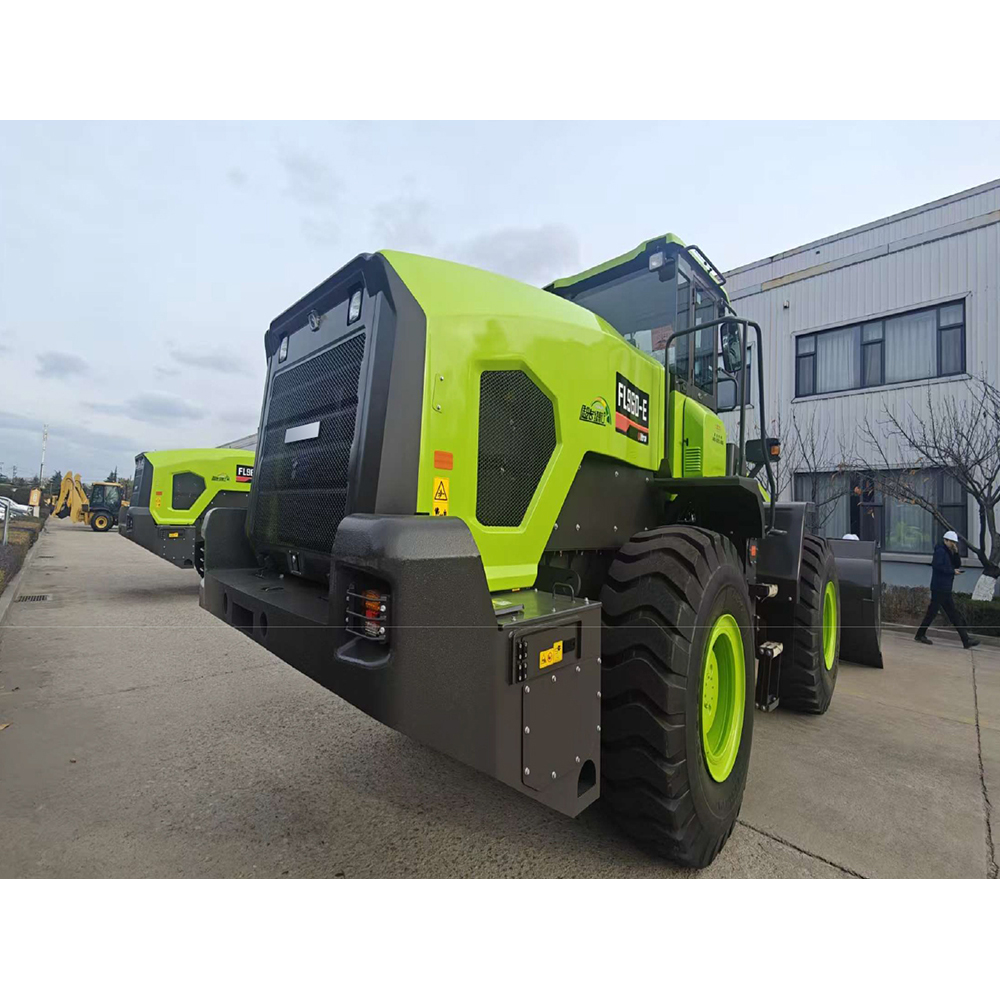

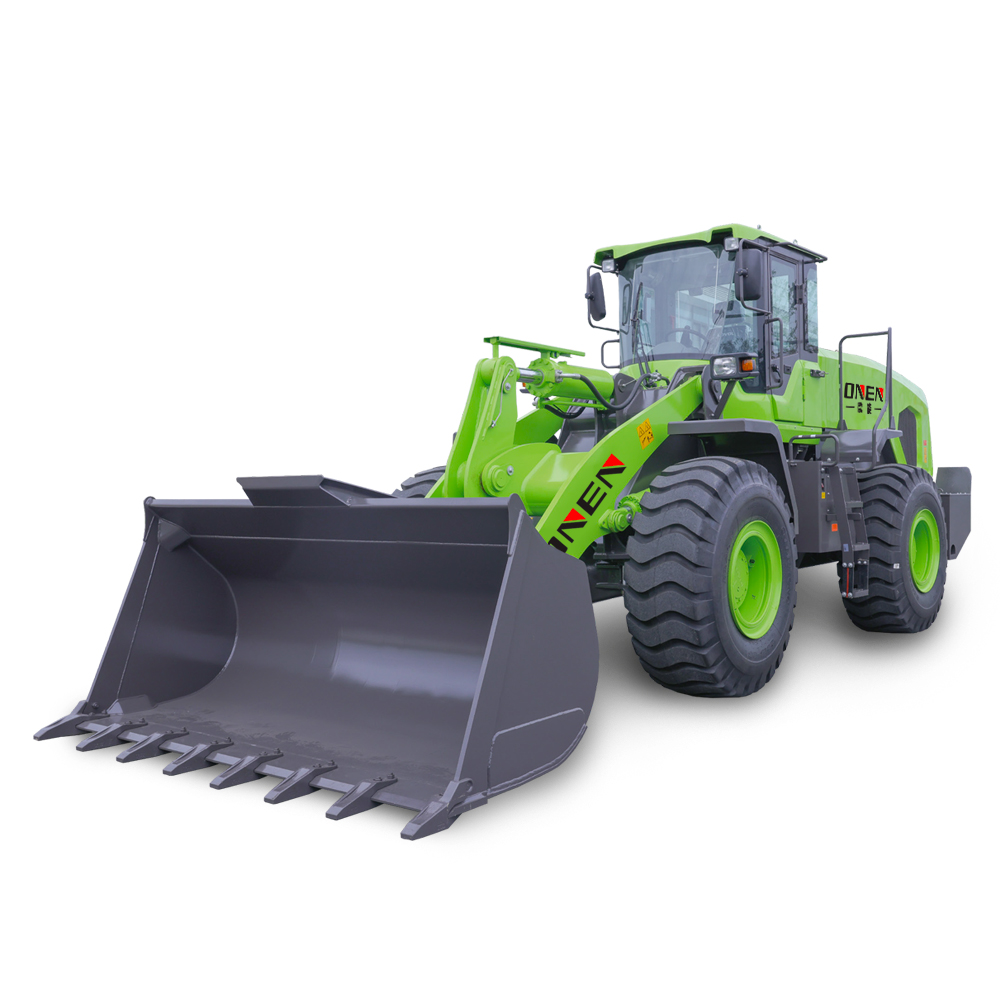

FL960-E Ultra是一款专为砂石料、煤炭装卸及短途运输场景打造，面向组织型客户，全面适配国内政策要求。搭载高能量密度电池系统，实现超长续航，满足高强度作业需求。车辆深度融合智能技术，具备高效、可靠的产品特性，显著降低能耗与排放，助力绿色物流。以节能环保为核心优势，赋能车队客户降本增效，轻松应对环保政策，引领运输装备智能化升级。
产品参数
Basic Parameters | |||
1 | model | FL960-E Ultra | |
2 | Load Capacity | kg | 5800 |
3 | Rated Power | kW | 225 (120+105) |
4 | Maximum Torque | N.m | 1100 (800+300) |
5 | Curb Weight | kg | 18260/18400/19000 |
6 | Bucket Capacity | m3 | 2.5-5.0 |
7 | Tilting Load (full steering) | kg | ≥116 |

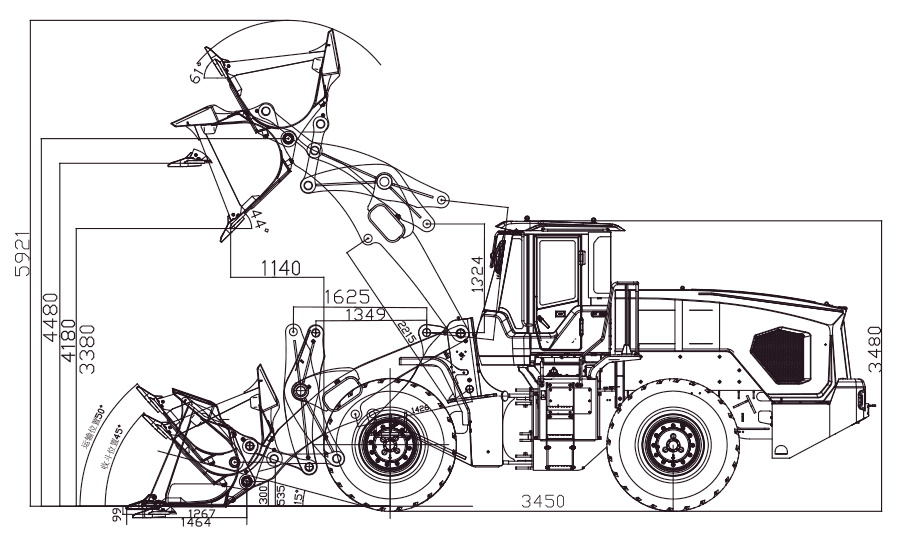

8 | Unloading Height | mm | 3380 |
9 | Unloading Distance | mm | 1140 |
10 | Maximum Traction | kN | 170 |
11 | Maximum Lifting Force | kN | 170 |
12 | First Gear Speed (Forward/Reverse) | km/h | 16/16 |
13 | Second Gear Speed (Forward/Reverse) | km/h | 40/- |

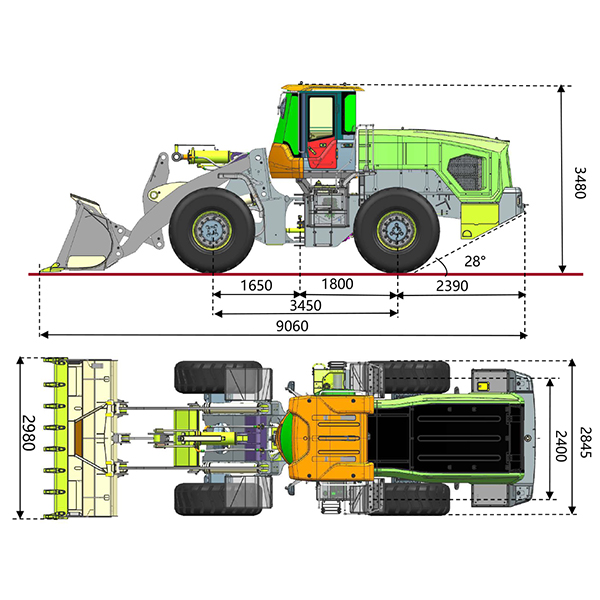

14 | Overall Length | mm | 9060 |
15 | Overall Height | mm | 3480 |
16 | Wheel Track | mm | 2250 |
17 | Wheelbase | mm | 3450 |
18 | Steering Angle | 。 | 37 |
19 | Maximum Climbing Angle | 。 | 28 |
20 | Three-term Sum | S | 9.8 |
Power Battery | |||
1 | Battery Type | lithium iron phosphate | |
2 | Rated Capacity Of Power Battery | kWh | 289/357/408 |
3 | Rated Voltage Of Power Battery | V | 589/538/614 |
4 | Maximum Charging Power Of Charging Pile | kW | 240/280/320 twin guns |
5 | Power Battery Heating | electric heating | |
Hydraulic System | |||
1 | Type | dual pump confluence | |
2 | Operation Method | pilot operation | |
Walking Motor | |||
1 | Motor Type | Permanent Magnet Synchronous | |
2 | Rated Power | kW | 120 |
3 | Rated Torque | N.m | 358 |
4 | Peak Power | kW | 220 |
5 | Peak Torque | N.m | 800 |
Hydraulic Motor | |||
1 | Motor Type | Permanent Magnet Synchronous | |
2 | Rated Power | kW | 105 |
3 | Rated Torque | N.m | 167 |
4 | Peak Power | kW | 190 |
5 | Peak Torque | N.m | 300 |
Other | |||
1 | Gearbox | Electronically controlled fixed-shaft AMT gearbox | |
2 | Drive Axle | Mpa | Enhanced dry drive axle |
3 | Tire | Mpa | 23.5-2518PR/16PR |
4 | Service Brake System | Km/h | Fully hydraulic four-wheel disc brake |
5 | Air Conditioning System | air conditioner with heating and cooling functions | |
