1 | Model | | CQD-B |
2 | Configuration No. | | 1570-Q |
3 | Power type | | 电动 |
4 | Steering type | | 电子转向 |
5 | Operation type | | 座驾式 |
6 | Load capacity | kg | 1500 |
7 | Load center distance | mm | 500 |
8 | Reach Distance | mm | 505 |
9 | Wheels type | | 聚氨酯轮 |
10 | Driving wheel size | mm | Ф382×142 |
11 | Bearing wheel size | mm | Ф267×114 |
12 | Overall Length (With Fork) | mm | 2477 |
13 | Overall Width | mm | 1270 |
14 | Mast lowered height | mm | 3210 |

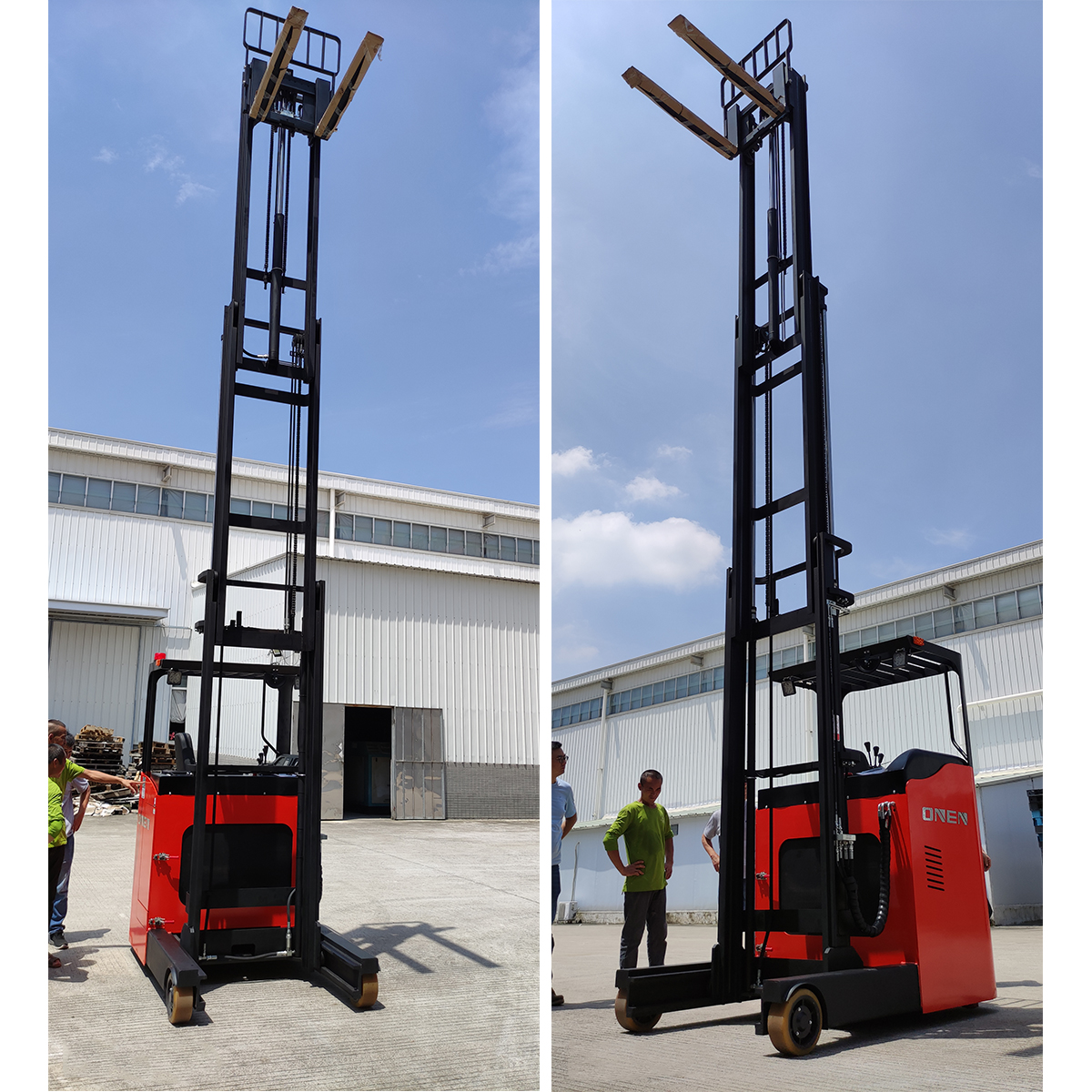

15 | Lift height | mm | 7000 |
16 | Extended mast height | mm | 7965 |
17 | Fork dimensions | mm | 35/100/1070 |
18 | Turning radius | mm | 1800 |
19 | Travel speed (Laden/Unladen) | km/h | 6.8/7.8 |
20 | Lift speed (Laden/Unladen) | mm/s | 120/240 |
21 | Lowering speed (Laden/Unladen) | mm/s | 315/260 |
22 | Gradeability (Laden/Unladen) | % | ≤10 |
23 | Driving motor | kw | 6.5 |
24 | Lifting motor | kw | 4.5 |
25 | Voltage/Capacity of lead-acid battery | V/Ah | 48/300 |
26 | Lead-acid battery charger | V/A | 24/40 |
27 | Voltage/Capacity of lithium battery (Optional) | V/Ah | 48/280 |
28 | Lithium battery charger | V/A | 24/50 |
29 | Sound level at driver's ear | dB(A) | <70 |
